Communication Base Station

Product Overview

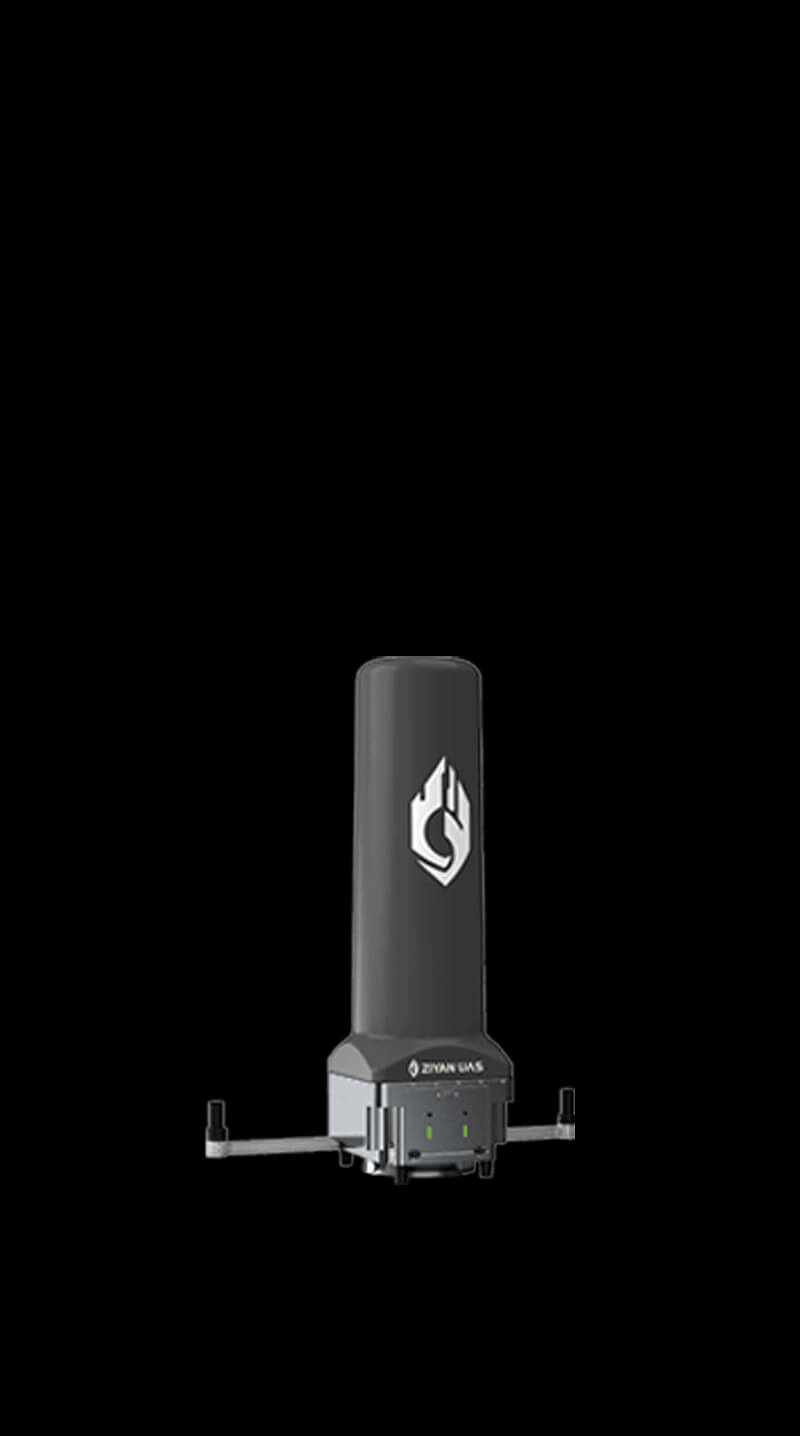

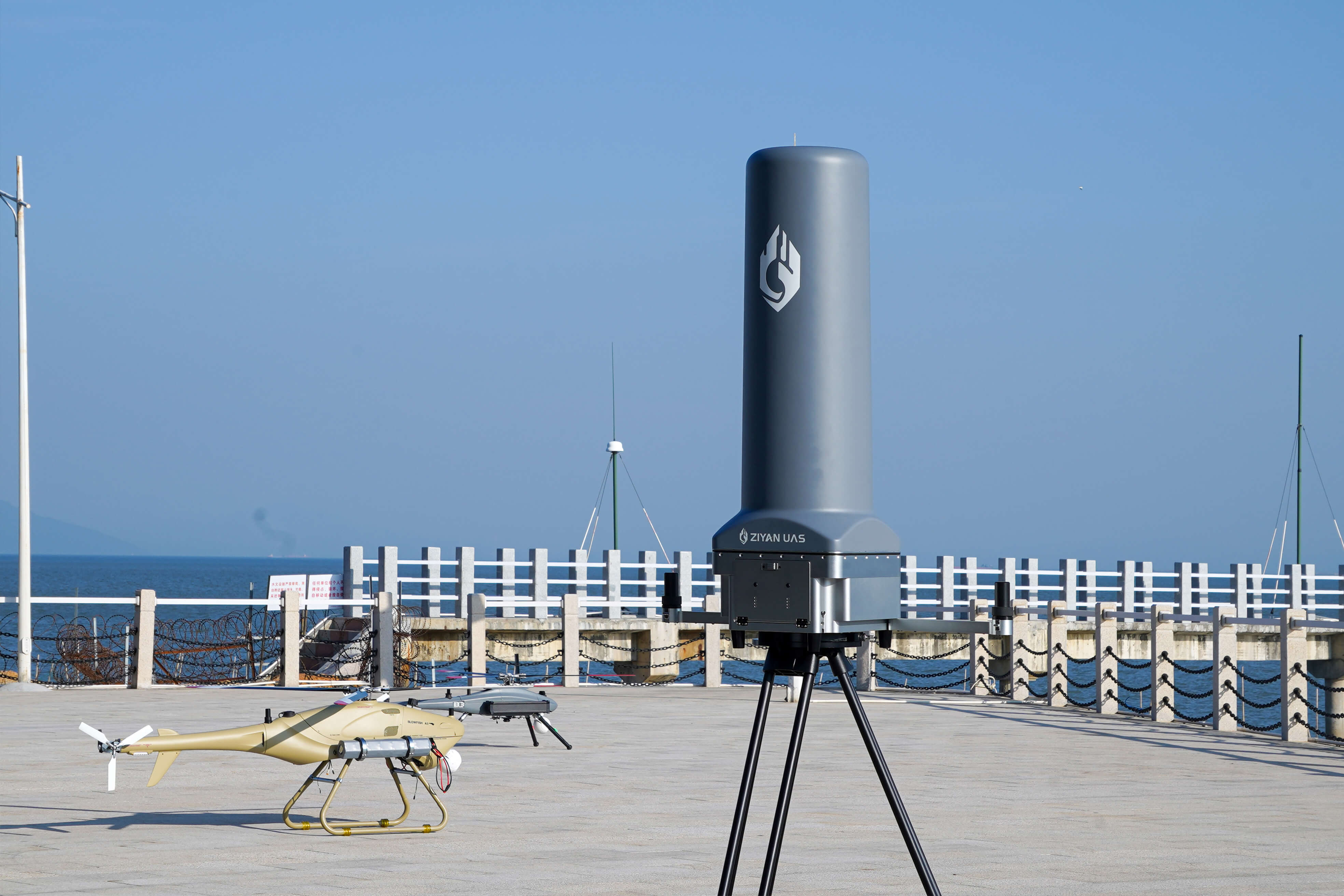

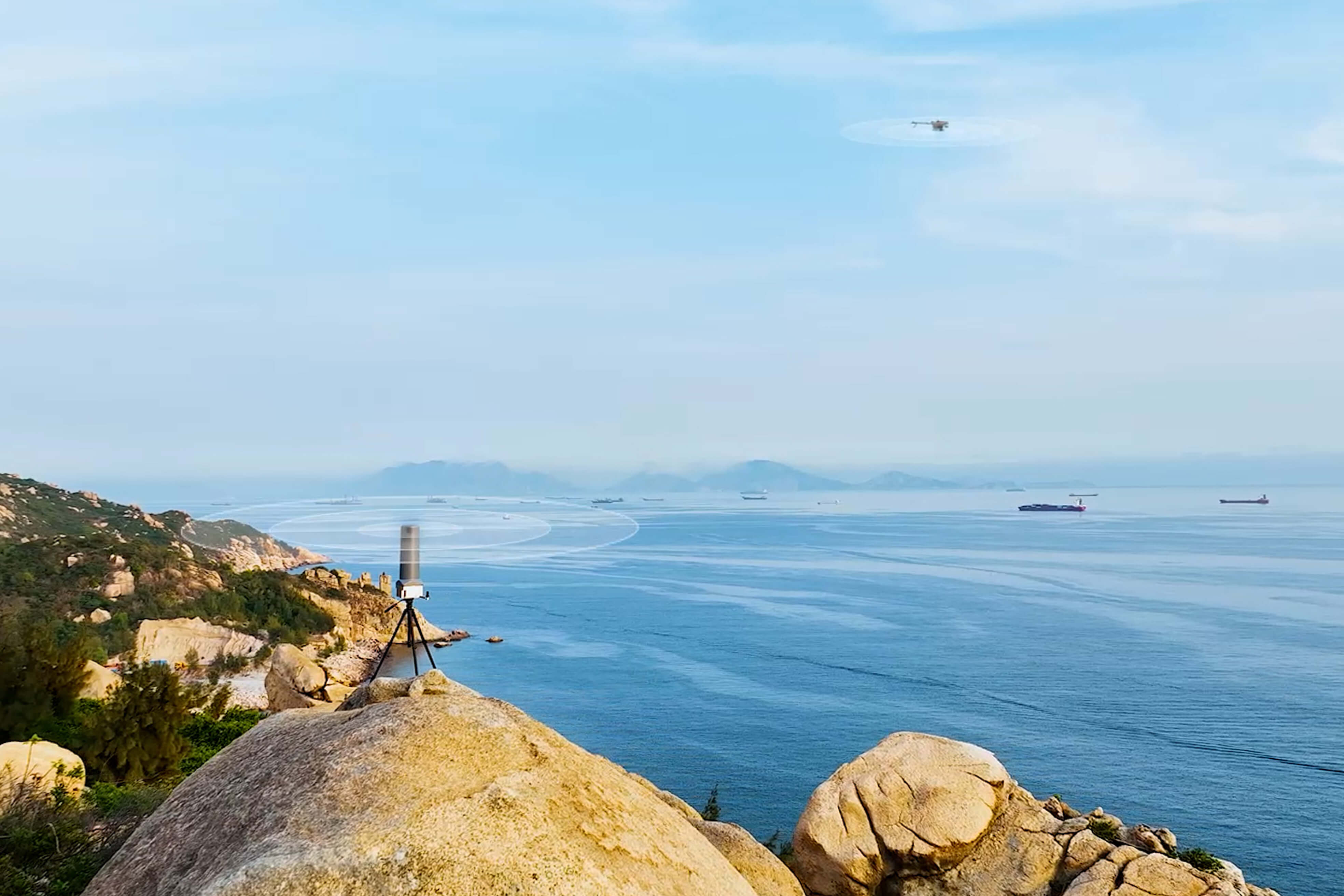

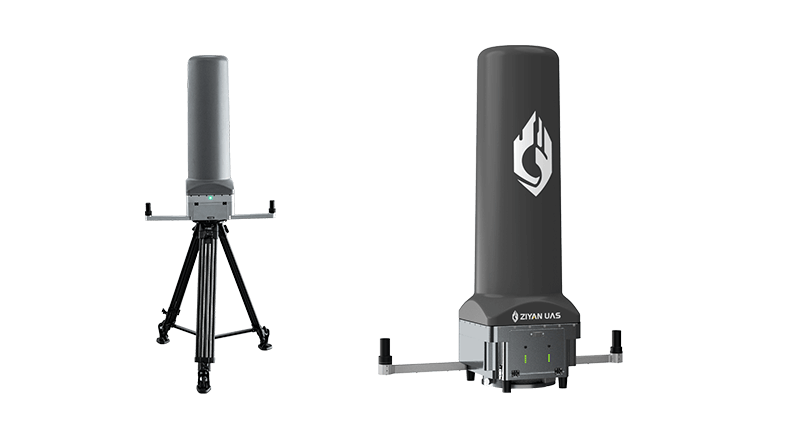

The Ziyan ZY-CBO3 communication base station, with quick-release design, ensures easy setup. It supports 30km communication and can be mounted on a tripod or mobile platforms like vehicles and ships

Product Advantages

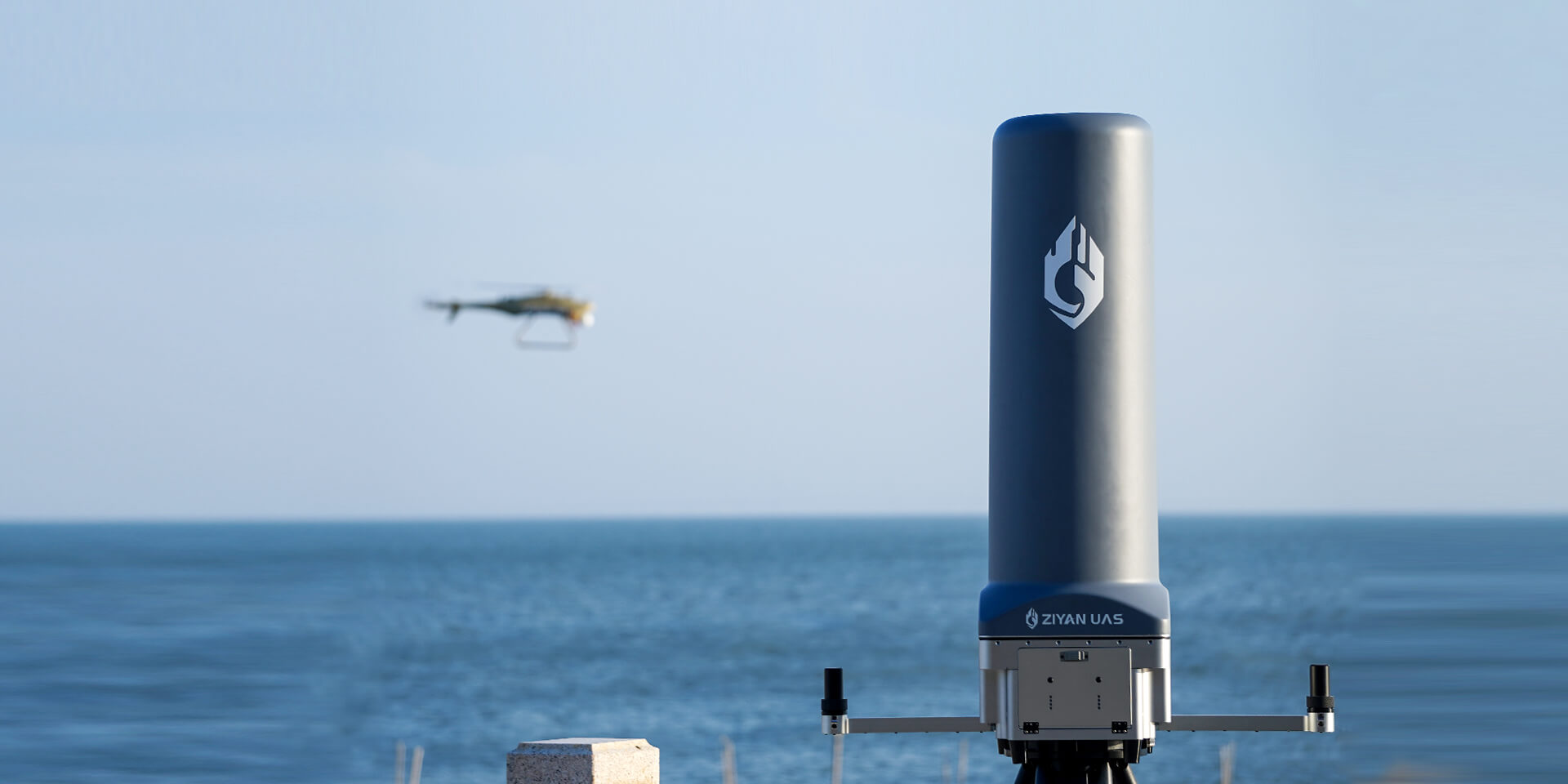

Automatic Tracking Antenna

The antenna is automatically adjusted according to the position of the aircraft in real time with a tracking speed reaching 50°/s. The high-gain directional antenna ensures long-distance communication of 30km without manual adjustment of the antenna direction
RTK& Mobile Base Station

Built-in positioning module, with RTK static base station and dynamic base station functions, and integrated positioning antenna. It effectively resolves the challenge which unmanned aerial vehicles face during take-off and landing on moving vessels. It greatly increases the accuracy during take-off and landing

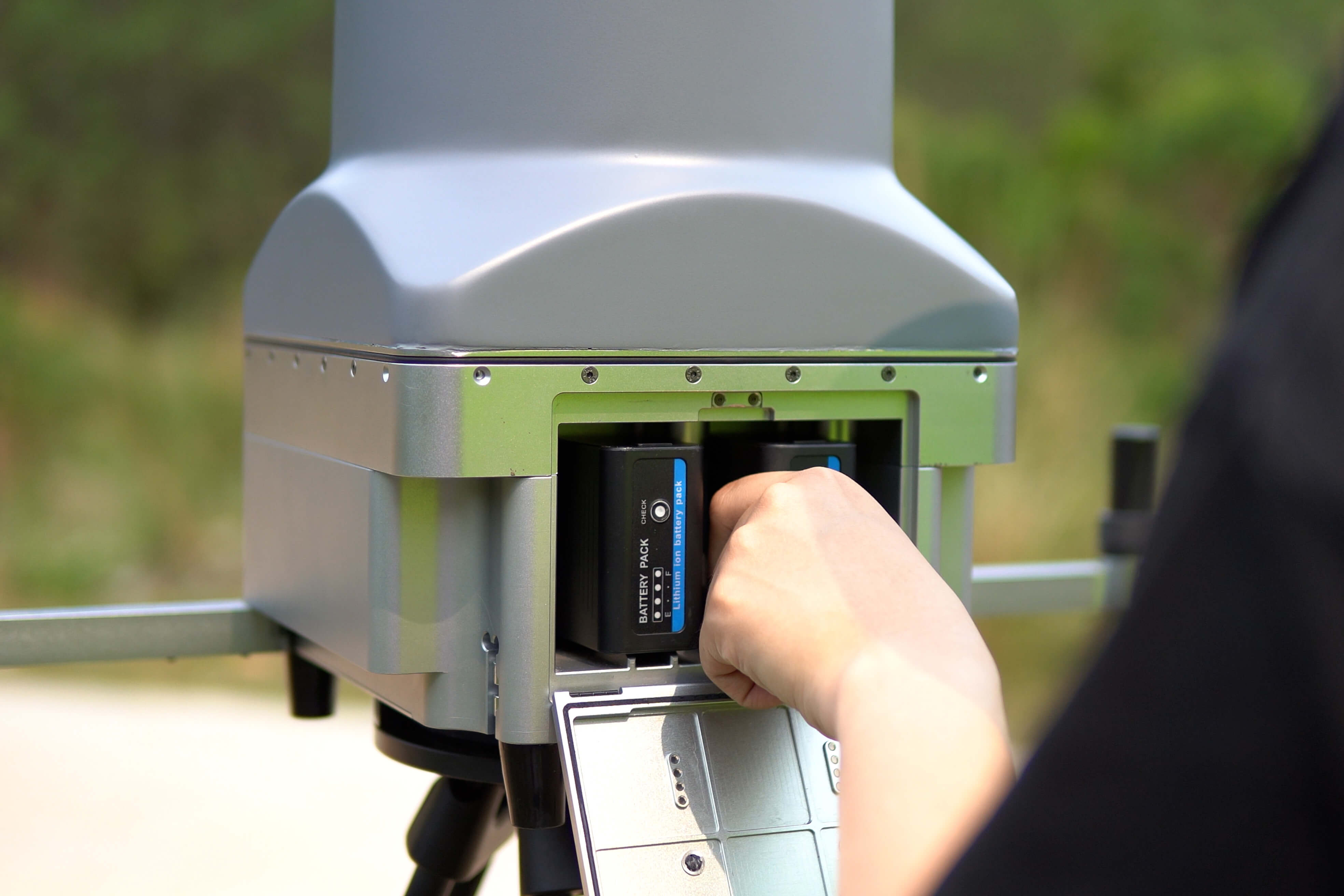

Dual Battery Power Supply

It has a dual battery redundant power supply design and supports battery instant swap (replacement of batteries without powering off the base station)

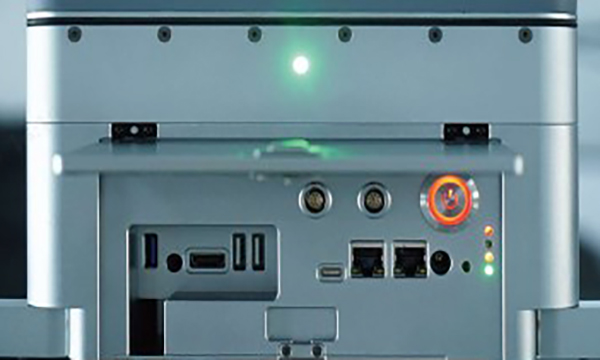

Video

Directly output aircraft video feed in real time through HDMI interface

Technical Specifications

Hardware Specifications	Dimensions	240240820mm (LWH)

Performance Specifications	Battery life	4H (dual battery)
	Tracking Latency	＜200ms
	Communication Distance	≥30km
	Tracking range	360°
	Tracking speed	50°/s
	Tracking accuracy	≤5°
Battery Specifications	Capacity	10050mAh
	Voltage	7.4V
